Wordpress and WooCommerce High Reliability and Performance
Learn how we designed and implemented this high reliability and high performance WooCommerce architecture in Google Cloud Platform GCP. In this article, we will describe in detail the architecture and technical solutions adopted to achieve this goal.
Table of Contents
Introduction
In this project, we faced the challenge of creating an e-commerce system based on WordPress and WooCommerce that guaranteed high reliability and high performance. The goal was to support a large volume of traffic while ensuring maximum uptime and reducing operational costs.
Challenges:
- Ability to handle traffic spikes: The WooCommerce High Reliability architecture must be able to scale automatically to cope with a sudden increase in visitors.
- High Availability: Critical to ensure maximum uptime, minimizing downtime and resulting lost sales.
- Cost optimization: The solution must be scalable to the customer's needs, avoiding costs for unused resources.
The High Reliability WooCommerce Project.

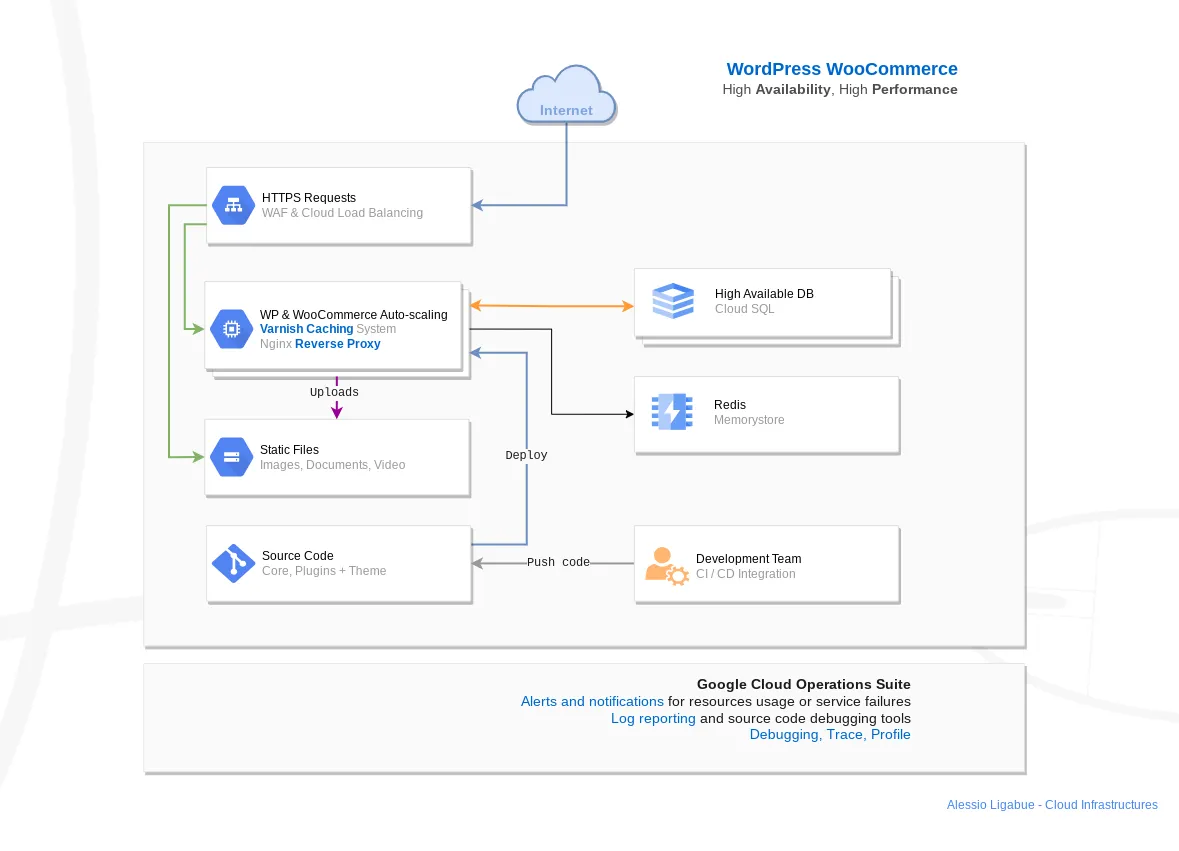

To achieve the set goals, we designed a dedicated architecture based on different components of the Google Cloud Platform. Here are the components of the architecture:
Google Cloud CDN
We use Google Cloud CDN to deliver static content and improve page loading performance globally.
Google Cloud Load Balancer and WAF Cloud Armor.
Load balancing is managed through Google Cloud Load Balancer, which distributes traffic efficiently among server instances. For security, we implemented Google Cloud Armor as a Web Application Firewall (WAF).
Google Compute Engine GCE instances in Autoscaling.
We used GCE instances configured for autoscaling, with Nginx, Varnish and PHP, to dynamically manage the workload based on demand and ensure deployment in different multi-zone failure domains.
MySQL Database in High Reliability Google Cloud SQL.
The MySQL database is hosted on Google Cloud SQL, configured for high reliability, automatic replication and managed backups.
Redis in GCP Memorystore
For session management, caching and persistence, we used Redis through GCP Memorystore, ensuring fast access to in-memory data from all instances of the autoscaling group.
Images and Static Resources
Images and static resources are managed with a WordPress plugin that integrates Object Storage, using Google Cloud Storage (GCS) in a multi-region configuration in Europe. GCS object storage also handles distribution to users via PoP CDN.
CI/CD
We implemented Continuous Integration/Continuous Deployment CI/CD pipeline, using Cloud Source Repositories, Cloud Build and Cloud Deploy to accelerate the development process, and automate testing and deployment across the architecture.
Cloud Operations Suite
Monitoring and logging, is done using Cloud Operations Suite, which includes advanced tools to monitor performance and manage application logs.
Snapshots
Regular snapshots ensure quick recovery in case of incidents, autoscaling, which automatically removes instances with problems, recreating them updated to the last deployment should make it secondary. The 'auto healing of instances and externalization of content, should be sufficient to ensure the uptime of the architecture.
Advantages and Benefits
- WooCommerce High Reliability: The architecture ensures high uptime and resilience against disruptions.
- WooCommerce High Performance: The use of CDN and autoscaling servers ensures high performance even under heavy loads, while reducing fixed hardware costs.
- WooCommerce High Performance: Server optimization, use of Redis, NginX and Varnish improve response time and balancing distributes computation load among multiple instances.
- WooCommerce Scalability: Auto-scaling configuration allows traffic peaks to be handled smoothly and minimizes resource waste when the load is lower.
- WooCommerce Uptime: The combination of high database reliability and load balancing ensures business continuity.
- WooCommerce Reliable Infrastructure: The use of the Google Cloud Platform ensures a robust and secure infrastructure.
- WooCommerce CDN: Offers improved overall performance and reduced loading times through Point of Presence POP in close proximity to users.
Technical Details.
To realize this high reliability WooCommerce project, we configured various technical components. Here are some details:
- Configuration of Nginx and Varnish for caching and reverse proxy management.
- Configuration of PHP-FPM
- Setting up autoscaling for GCE instances to automatically adapt to traffic peaks.
- Using Redis for session and cache management, improving data access speed.
- Integration with Google Cloud Storage for efficient management of static resources, such as images.
FAQ
What is load balancing and why is it important?
Load balancing distributes traffic across multiple servers to ensure that no server is overloaded, thus improving system performance and reliability.
Why use Google Cloud CDN?
Google Cloud CDN accelerates content delivery to end users, reducing latency times and improving overall site performance.
What are the benefits of using a MySQL database in high reliability?
A MySQL database configured for high reliability ensures business continuity and redundancy, minimizing the risks of data loss and downtime.
